Farm Estate Documentation

High-Accuracy Reality Capture Modeling

Project Overview:

FCC received 3D laser scan data for a farm property and developed as-built BIM models at LOD 500 across the entire site. The scope covered multiple structures, including the main residential building, a poolside shading structure, a greenhouse, an animal housing facility, and two additional outbuildings, delivering a complete and coordinated as-built record of the full property.

Farm Estate Documentation

Structures & Scope of Work

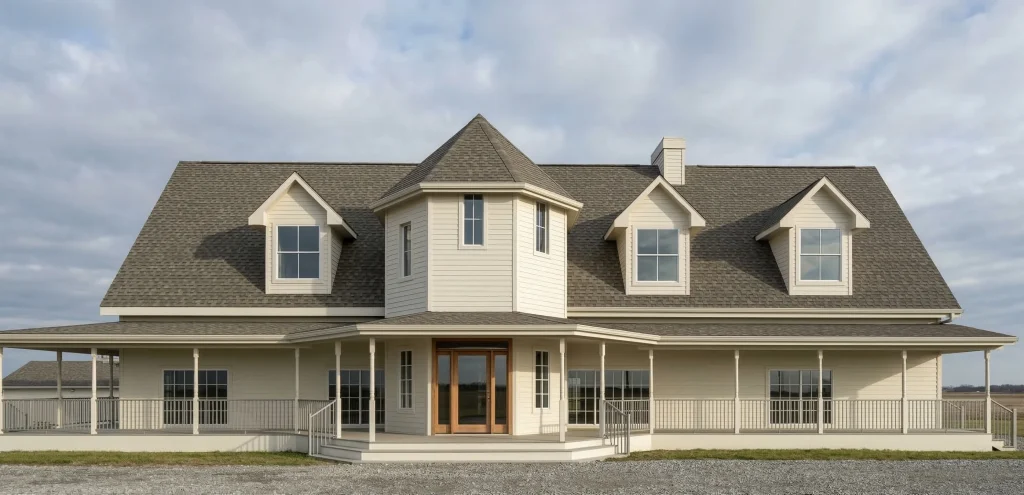

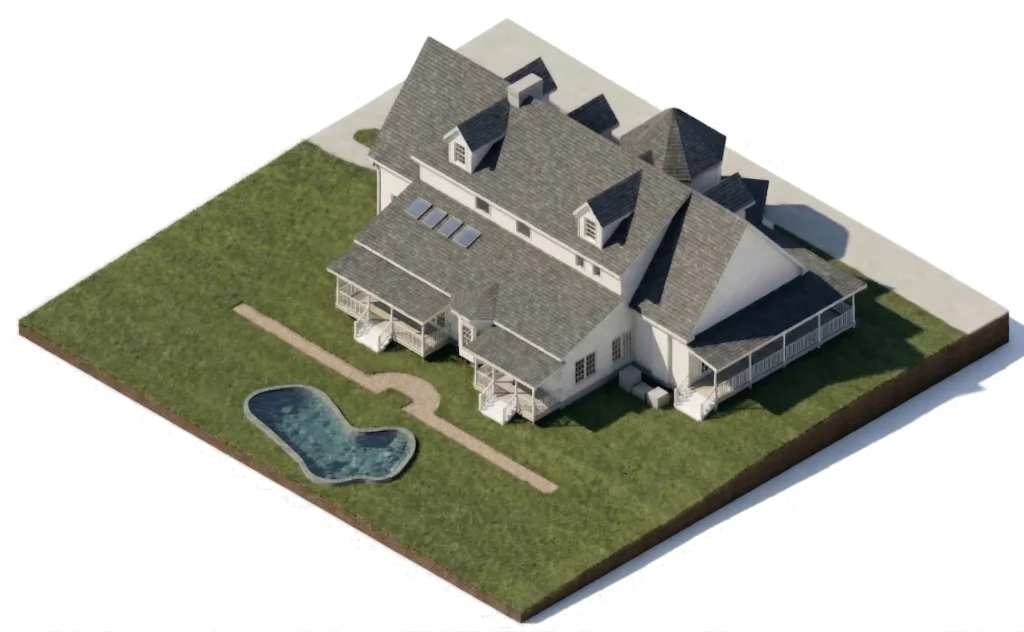

  • Main residential building modeled in full including all interior spaces, ceiling geometry, floor finishes, and fixed architectural elements

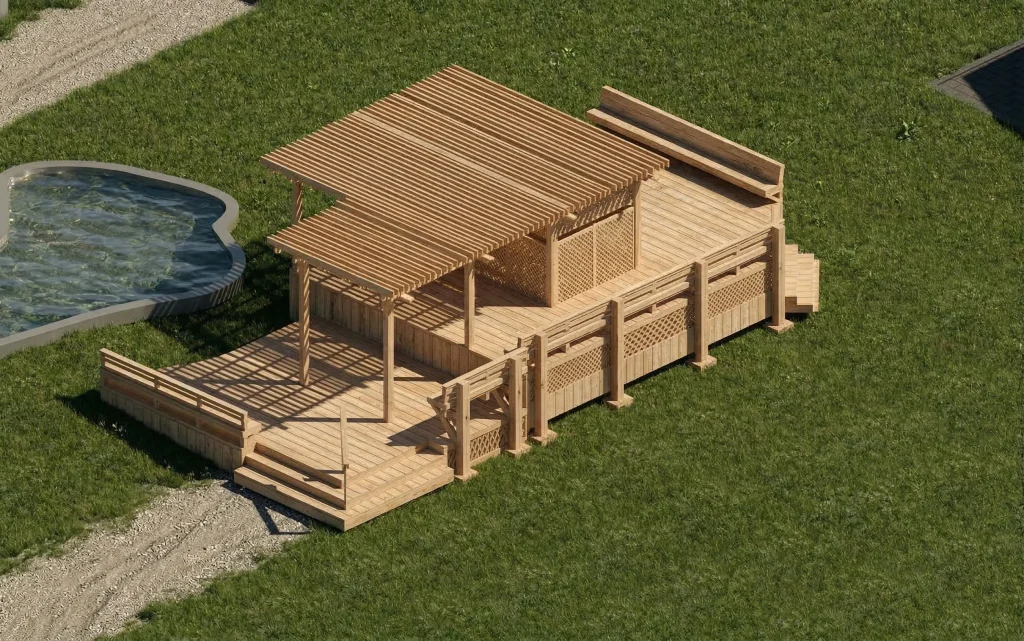

  • Poolside shading structure captured and modeled with accurate geometry and positioning

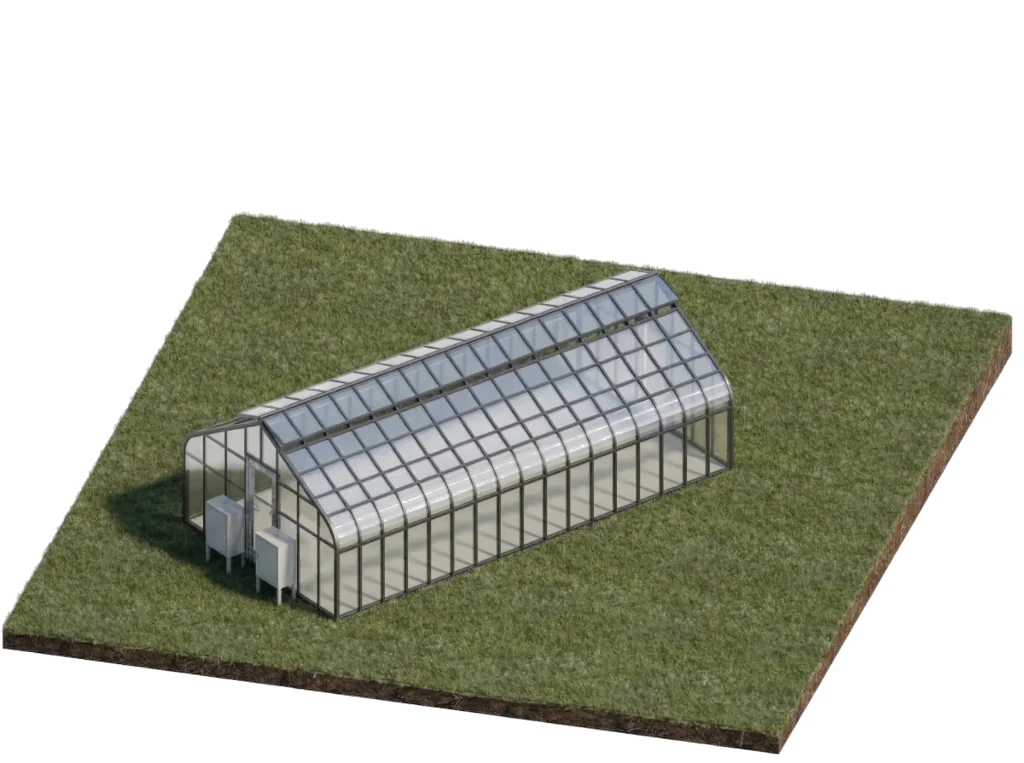

  • Greenhouse structure modeled including framing system, glazing panels, and full envelope geometry
  • Animal housing facility and additional outbuildings documented to the same LOD 500 standard throughout
Farm Estate Documentation

As-Built Detail & LOD 500

  • Varied building types, from enclosed residential spaces to open framed and agricultural structures, all modeled consistently from the point cloud

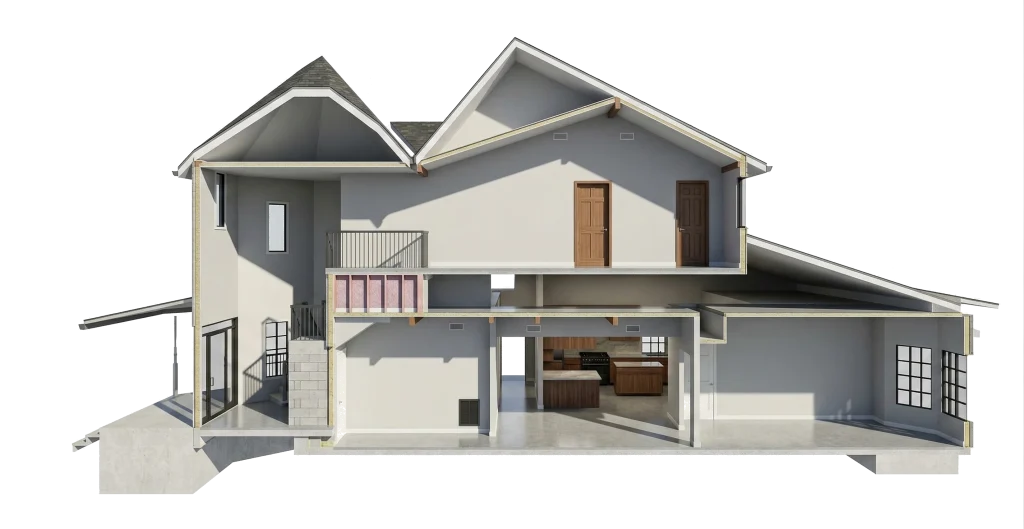

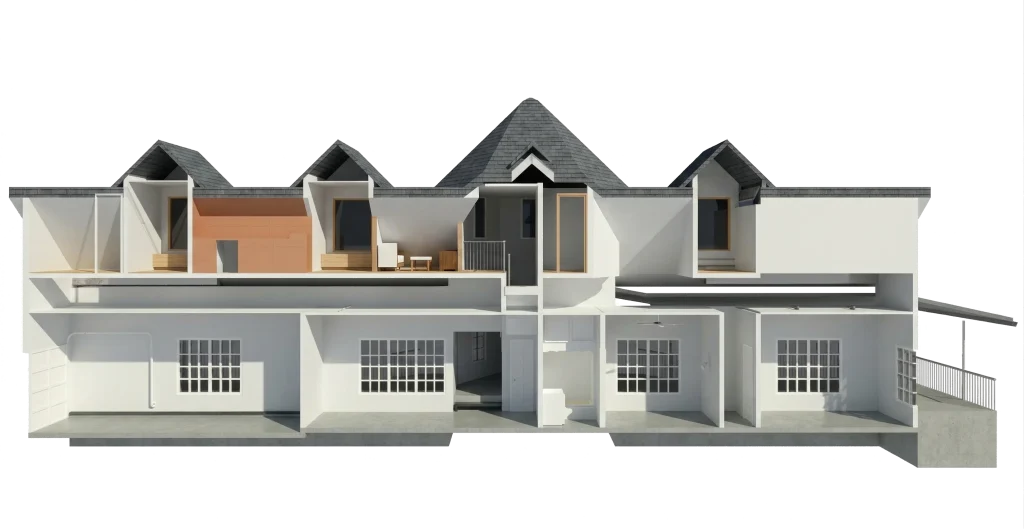

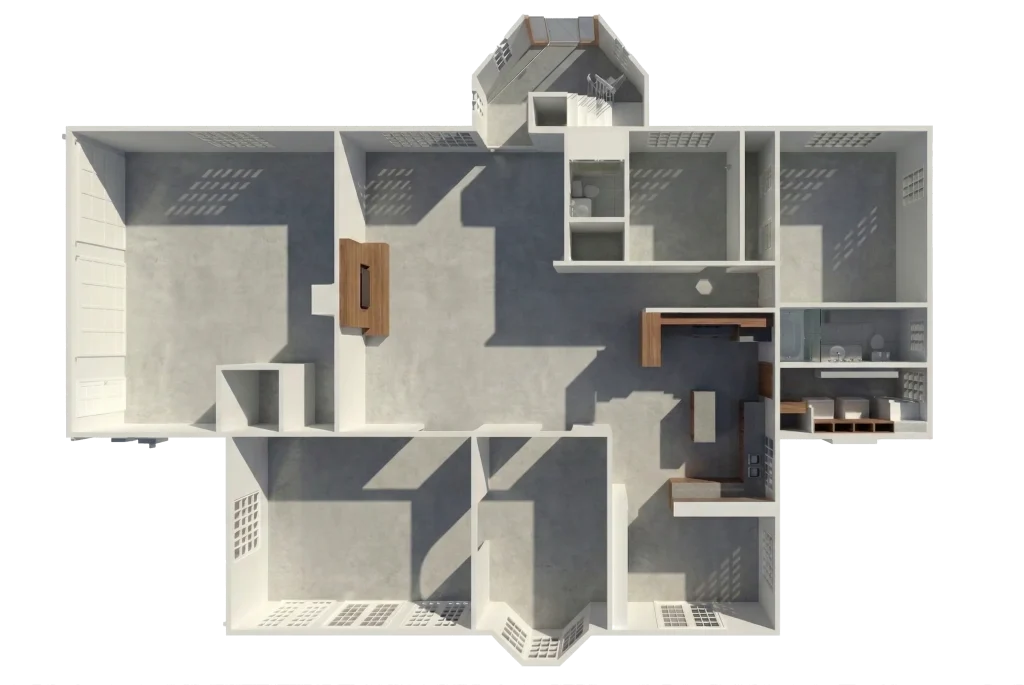

  • Interior elements including ceilings, floors, casework, and fixed components fully documented across all relevant buildings

The diversity of structures across the farm required careful and consistent modeling to ensure every building was delivered to the same high standard within a single coordinated dataset.

Project imageProject imageProject imageProject imageProject imageProject image
Farm Estate Documentation

Point Cloud to BIM

  • Point cloud data interpreted across the full site covering all structures and their surrounding context
  • Each building modeled individually while maintaining accurate spatial coordination across the entire property
  • Complete as-built dataset delivered at LOD 500, ready to support renovation, expansion, or future planning

Working from the provided scan data, FCC developed a verified as-built BIM model covering every structure on the farm, giving the client a reliable foundation for any future design or development work across the property.
