Lufkin Industrial Facility

High-Accuracy Reality Capture Modeling

Project Overview:

FCC received 3D laser scan data for the Lufkin industrial manufacturing facility and developed a comprehensive as-built BIM model working directly from the point cloud dataset. The scope centered on the facility's extensive steel structure, modeling all structural elements as they exist in their true installed condition. Beyond the structural scope, facility-specific equipment including the dedicated overhead crane was also modeled, delivering a complete and accurate as-built record to support the client's facility management and operations needs.

Lufkin Industrial Facility

Scope of Work

  • Complete steel structure modeled as-built including all columns, beams, bracing, connections, and structural framing throughout the facility
  • Roof structure and overhead framing fully documented with accurate geometry and positioning
  • Facility crane modeled in full detail as a dedicated piece of equipment specific to this industrial environment
  • Walls, cladding panels, and building envelope elements modeled reflecting true existing conditions
Lufkin Industrial Facility

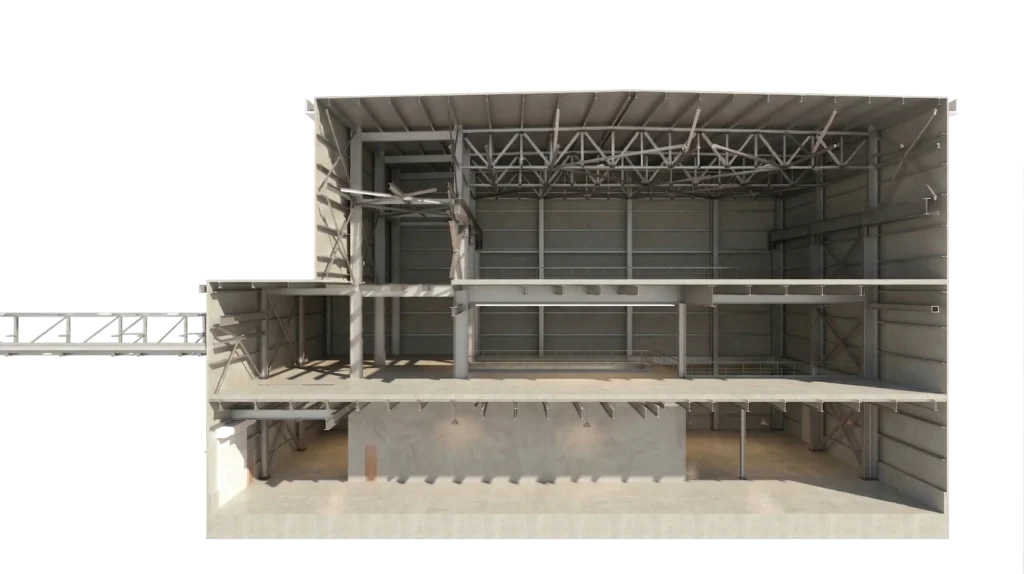

As-Built Detail & Steel Structure Modeling

  • Complex steel frame geometry interpreted from the point cloud and modeled with full structural accuracy throughout
  • Facility crane modeled as a fully coordinated element within the structural dataset, reflecting its true installed position and geometry

Industrial steel structures require careful interpretation of scan data due to large spans, dense grids, and integrated equipment. Every element was modeled with the precision needed to provide a reliable reference for facility operations and management.

Project imageProject imageProject imageProject imageProject image
Lufkin Industrial Facility

Point Cloud to BIM

  • Point cloud data interpreted across the full facility covering the complete steel structure, building envelope, and all modeled equipment
  • Structural and equipment elements coordinated within a single unified as-built dataset
  • Complete as-built model delivered ready to support facility management, operational planning, and future development of the site

Working from the provided scan data, FCC developed a precise and fully coordinated as-built BIM model of the Lufkin facility. The delivered model gives the facility management team a trusted and accurate digital record of the entire structure, ensuring every operational and planning decision is made with complete knowledge of the facility as it stands today.
