Residential As-Built Collection

High-Accuracy Reality Capture Modeling

Project Overview:

FCC received 3D laser scan data for a series of residential properties and developed detailed as-built BIM models for each, delivered at LOD 500. Working from high-density point cloud datasets, the scope of each project covered the complete interior and exterior condition of the structure, modeling every architectural element from floor to ceiling with full precision. From single-story homes to multi-level residences, every project in this collection was modeled to provide a verified, construction-ready record of the property as it exists today.

Residential As-Built Collection

Scope of Work

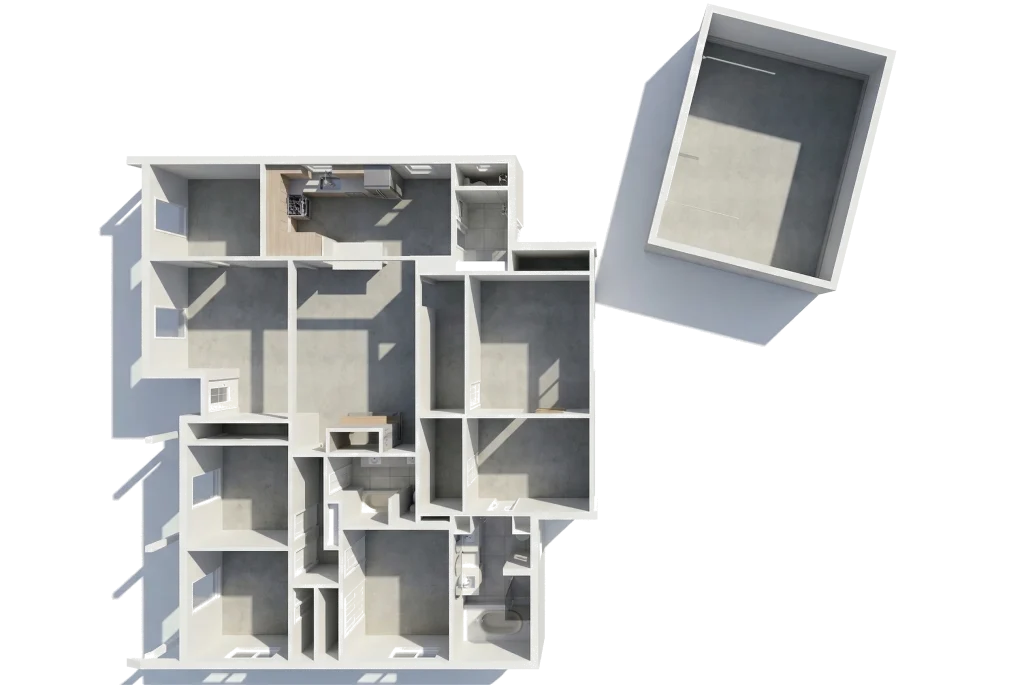

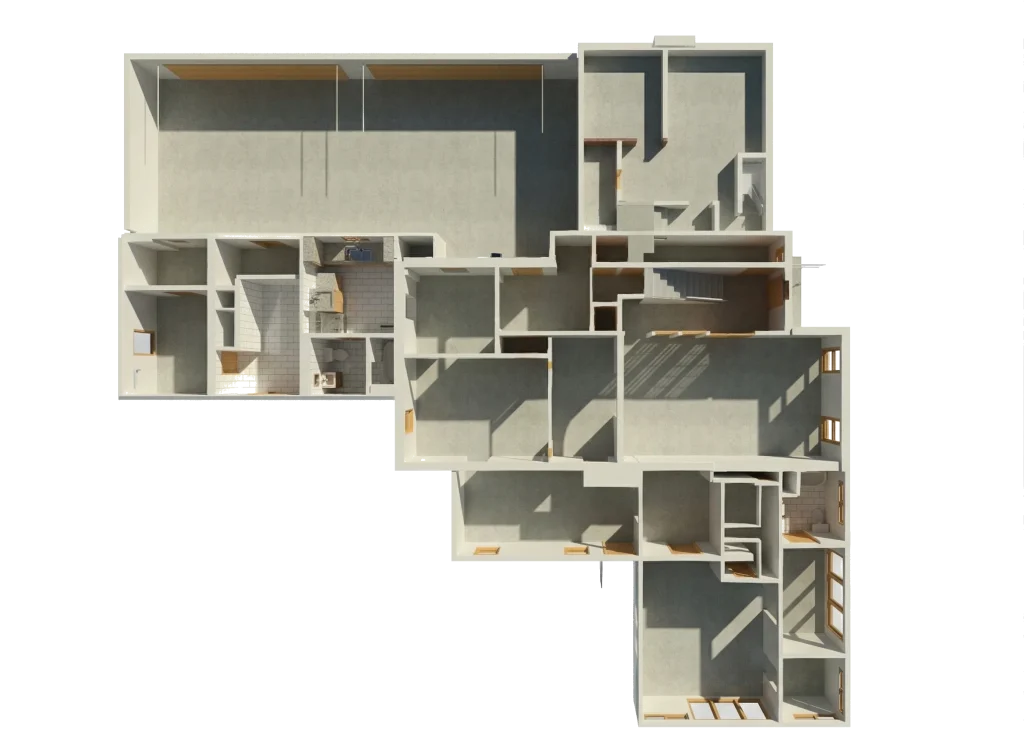

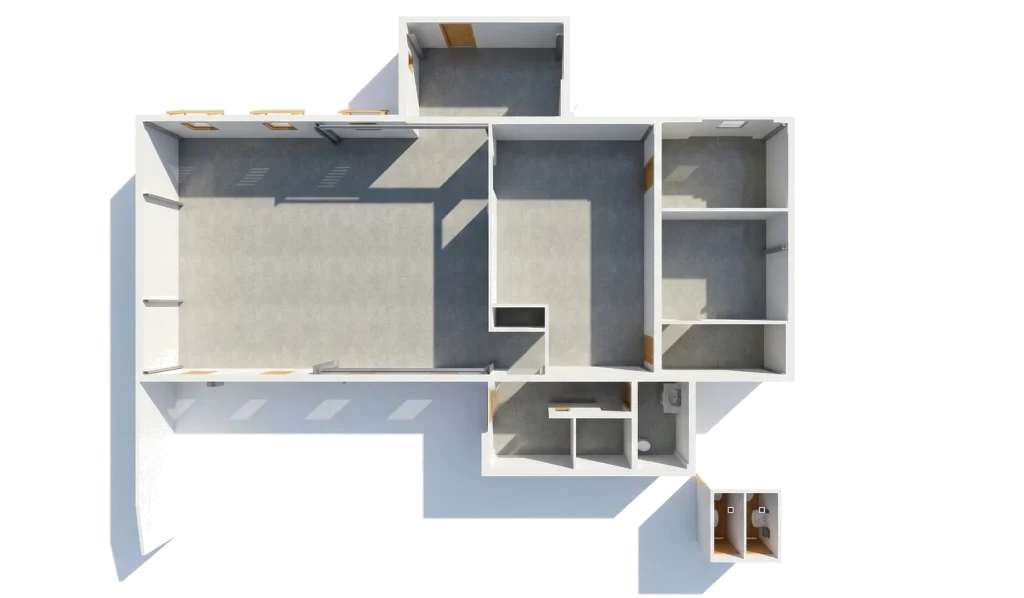

  • Complete as-built modeling of all rooms, corridors, and circulation spaces across each floor level

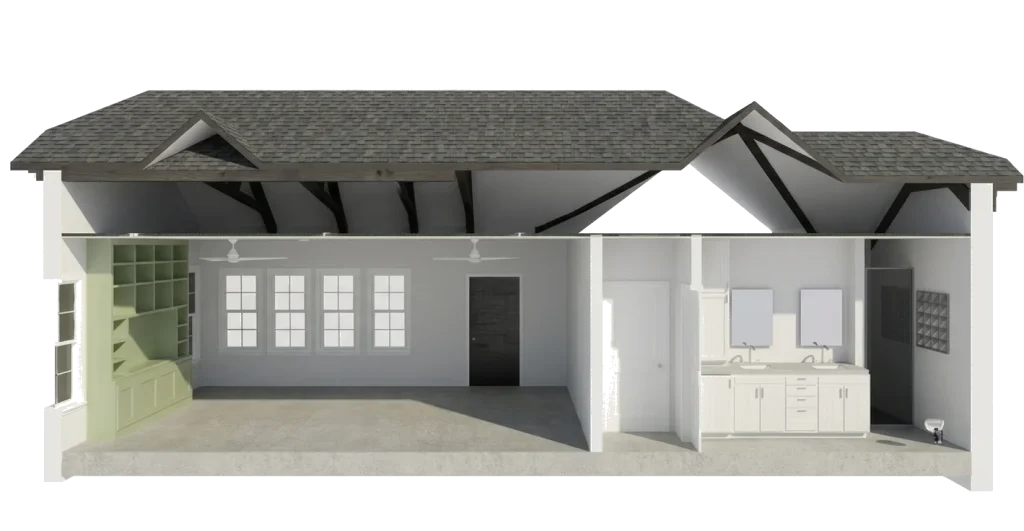

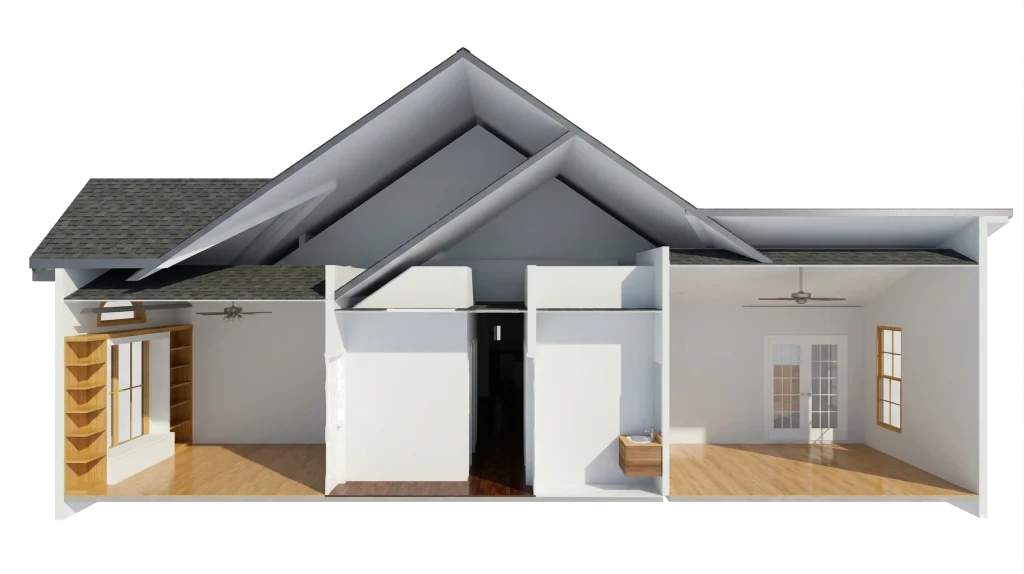

  • Ceiling geometry fully modeled including soffits, bulkheads, recesses, and all overhead architectural features
  • Floor surfaces modeled with accurate level and finish information throughout the entire footprint

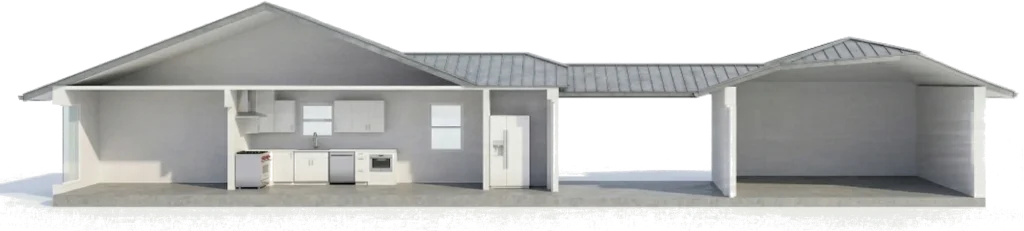

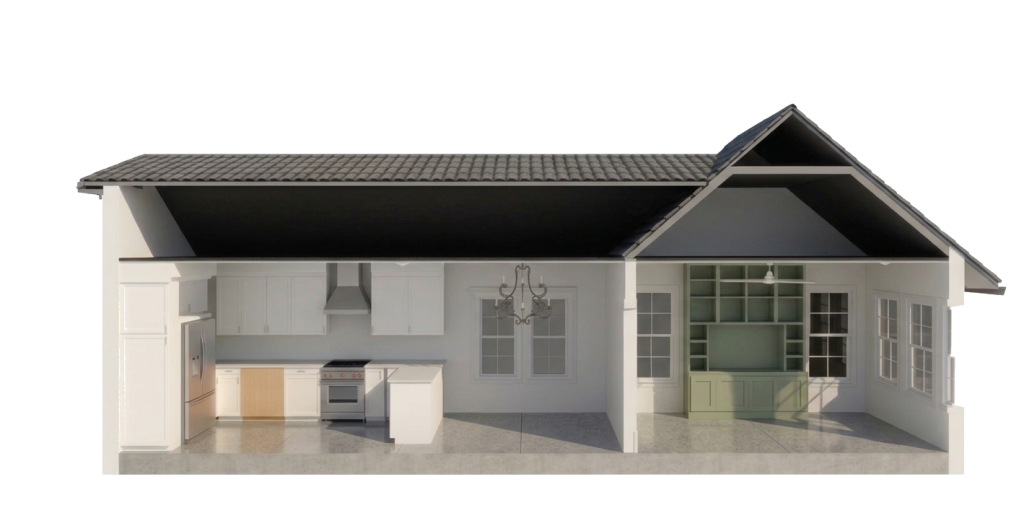

  • Casework, built-in joinery, kitchen units, and fixed cabinetry modeled in full detail
  • Bathroom and toilet components modeled including all fixtures

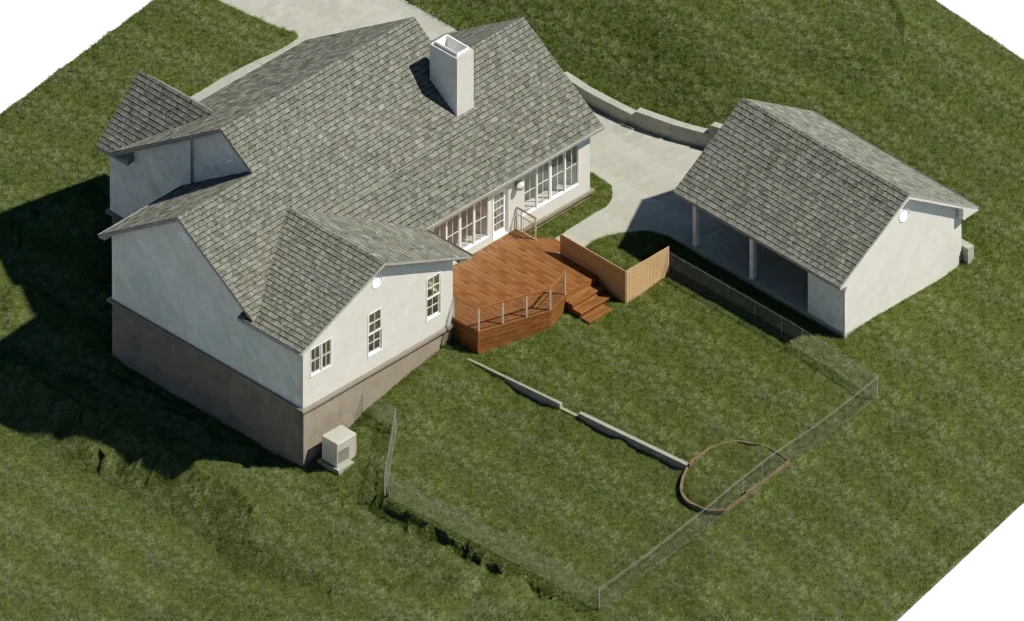

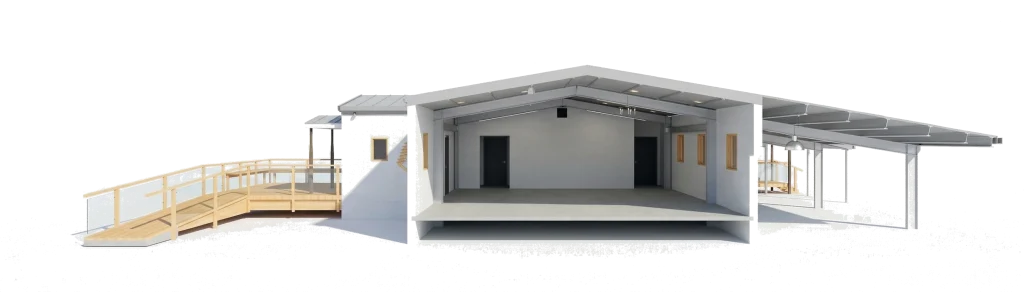

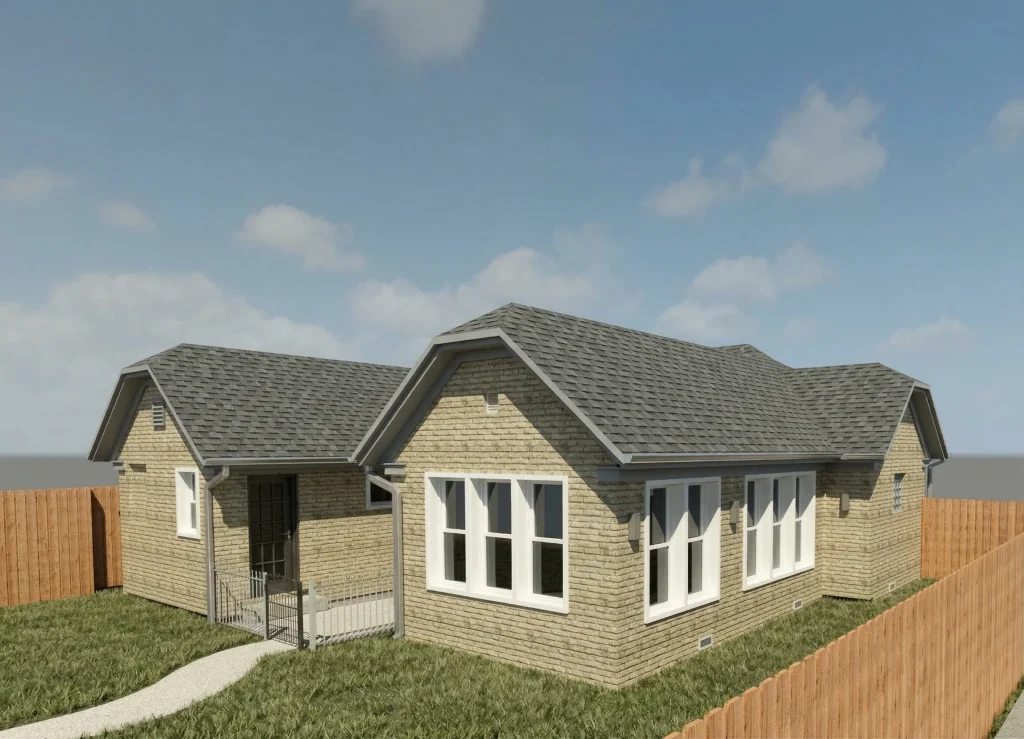

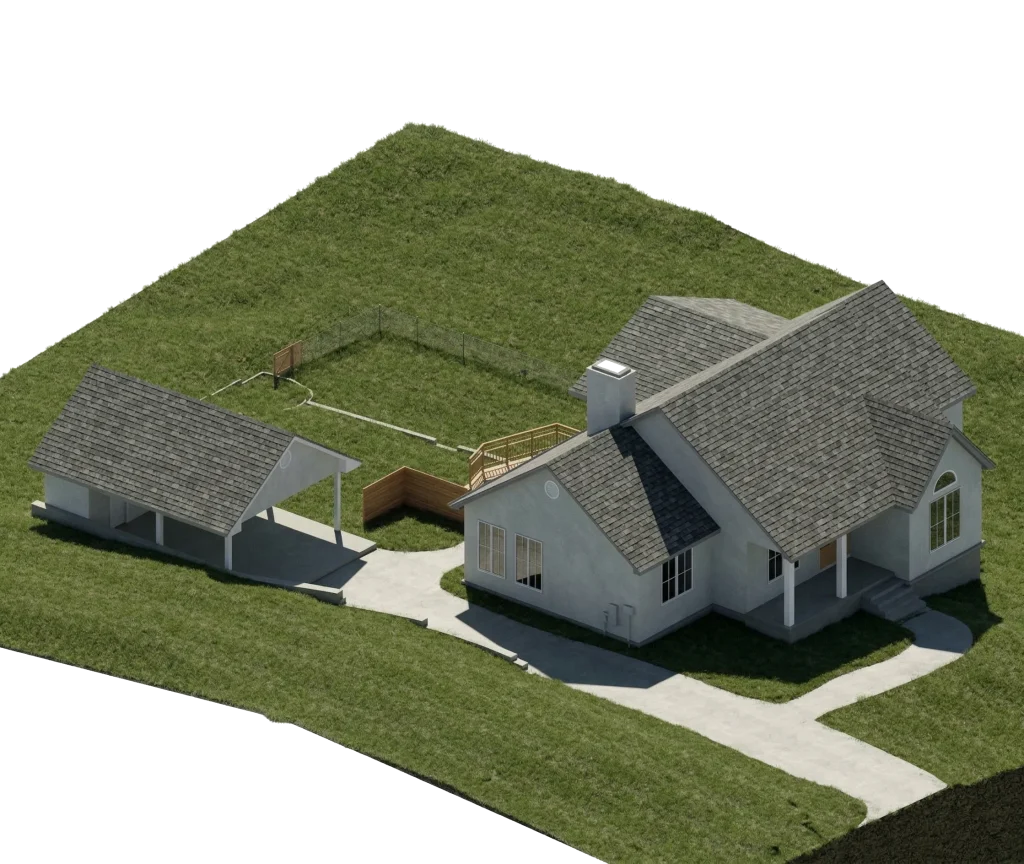

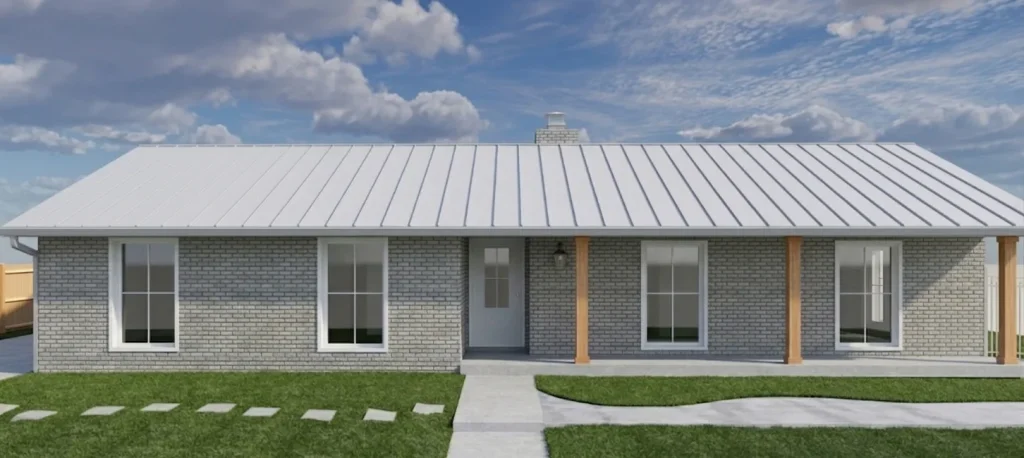

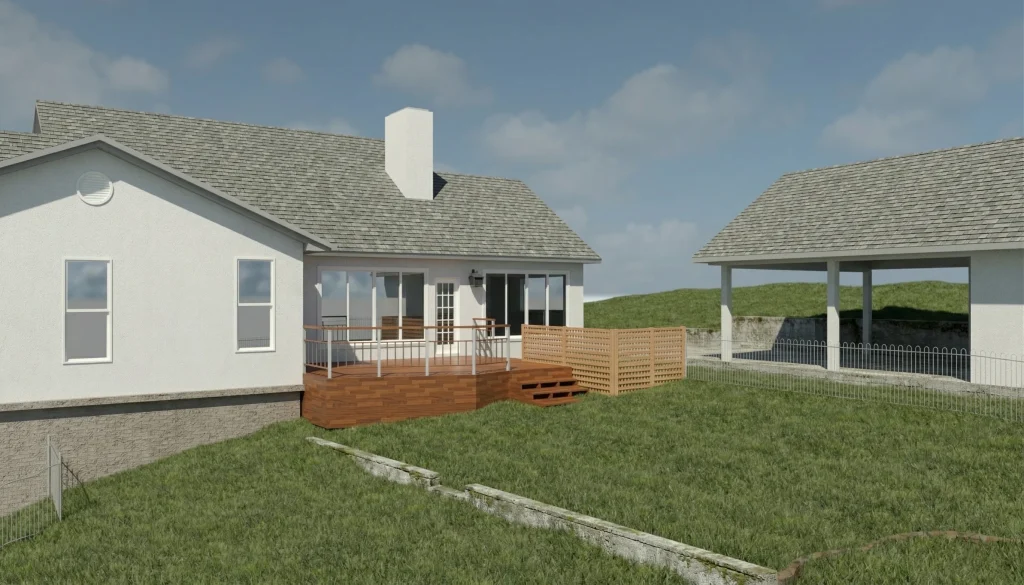

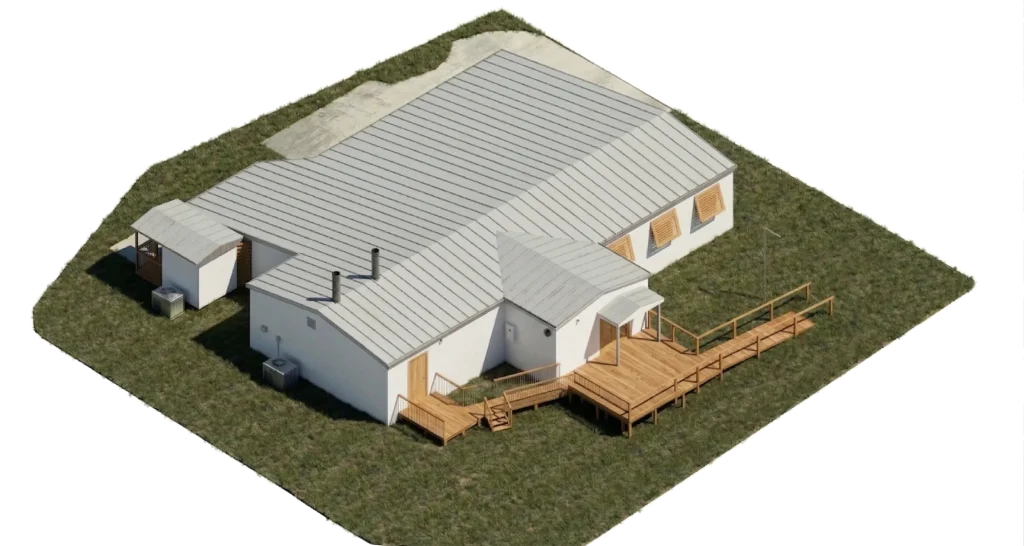

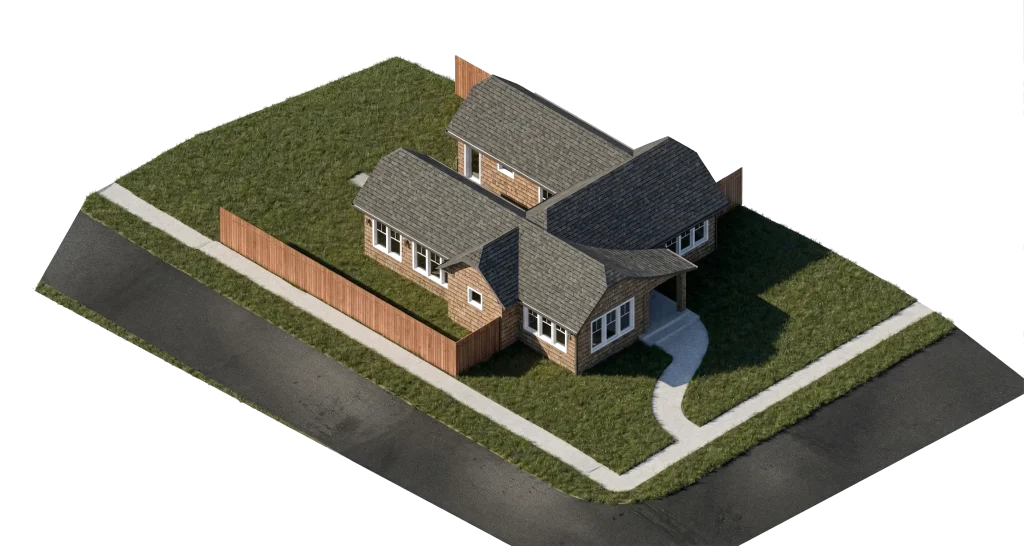

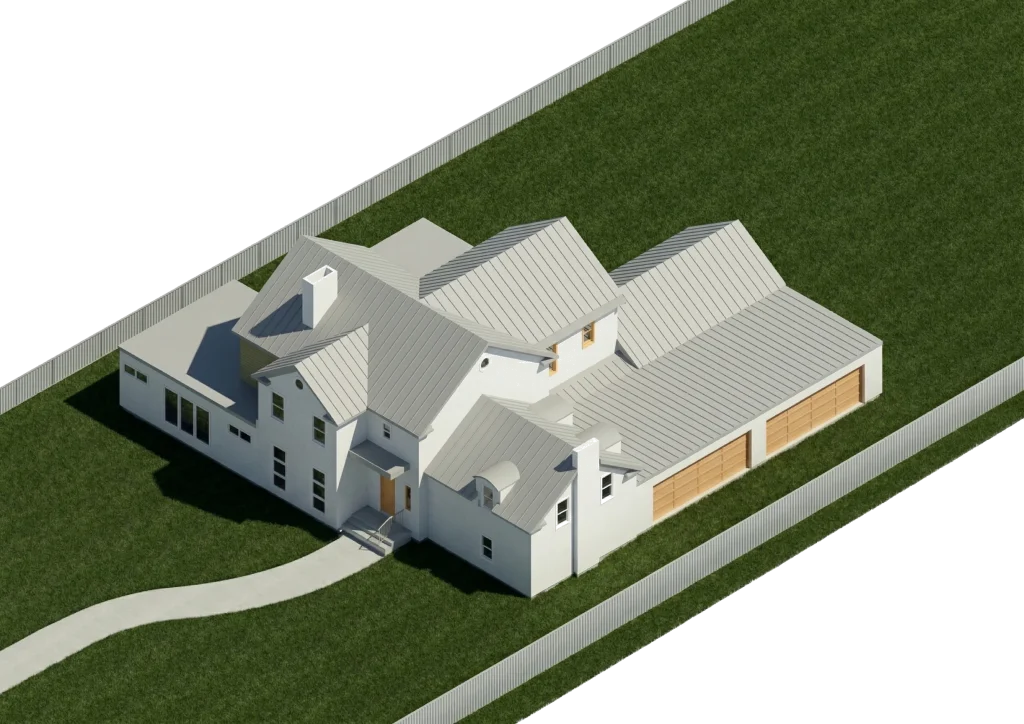

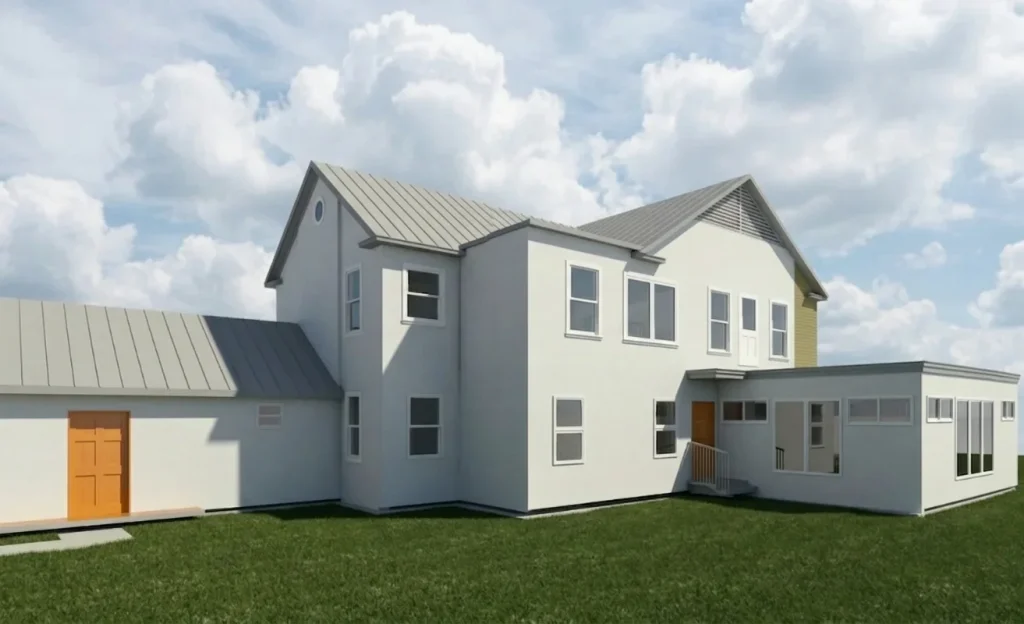

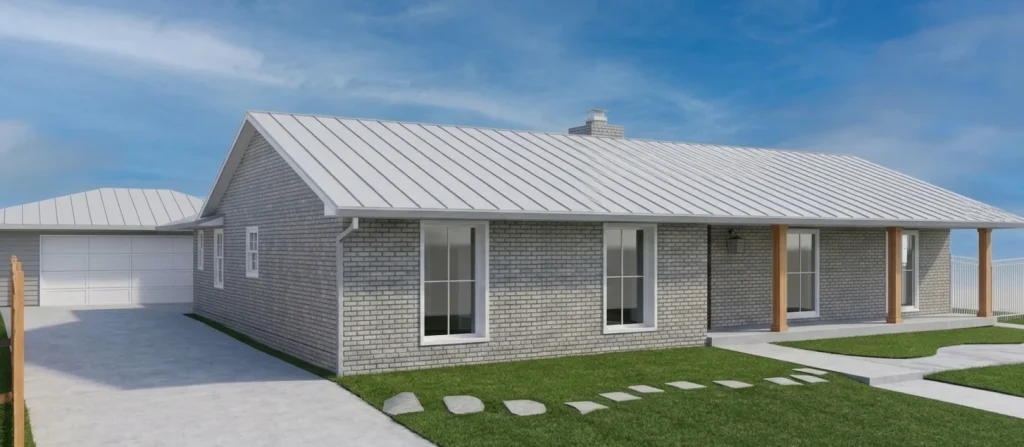

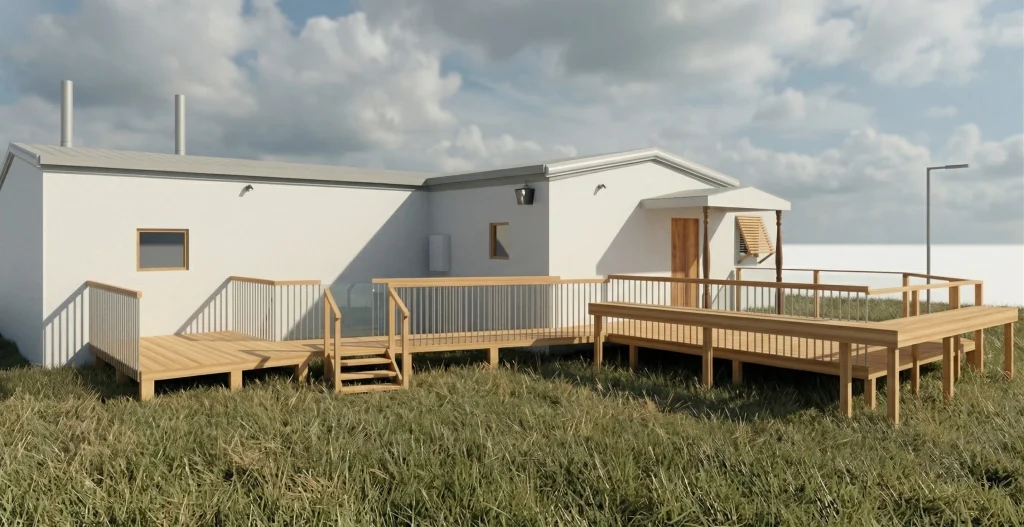

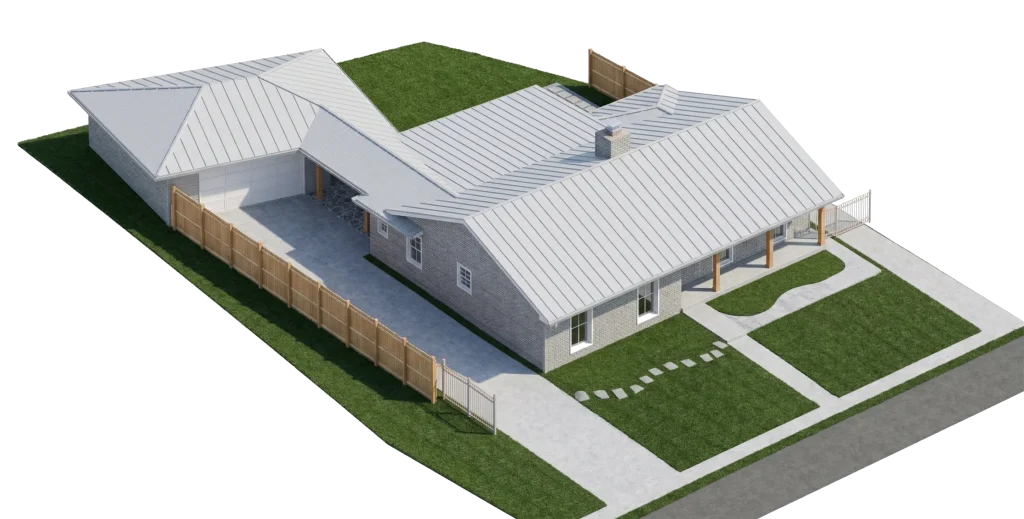

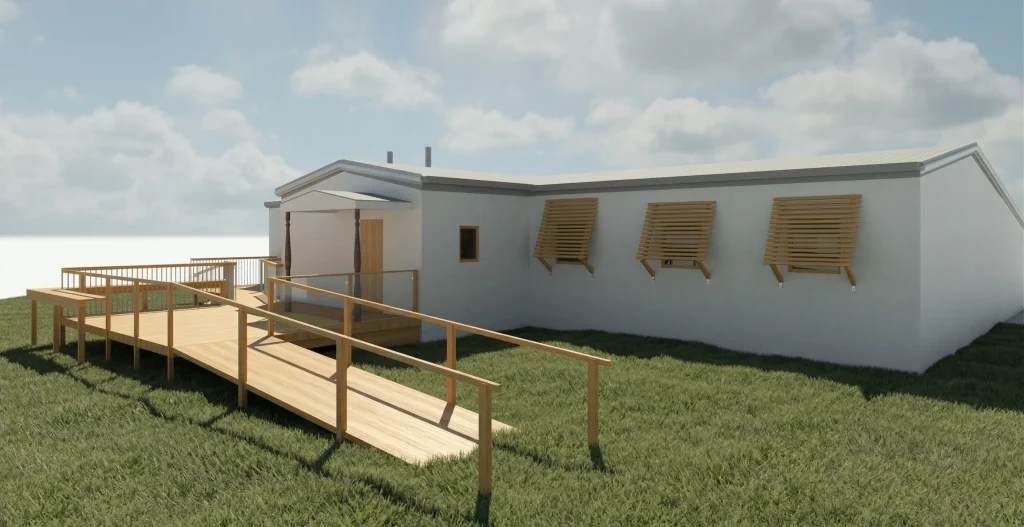

  • Exterior walls, facades, openings, and surrounding site conditions represented as part of the complete as-built scope
Project imageProject imageProject imageProject imageProject imageProject image
Residential As-Built Collection

Multi-Level & Single-Story Coverage

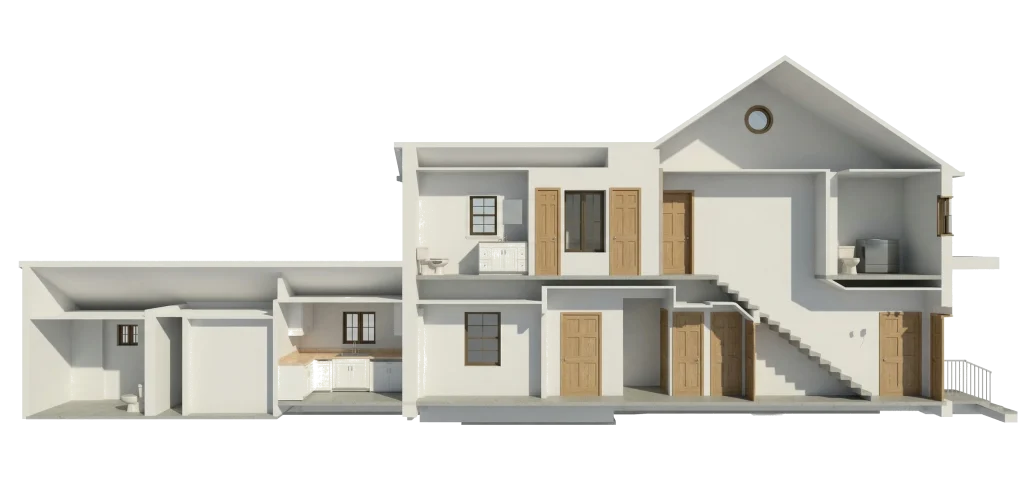

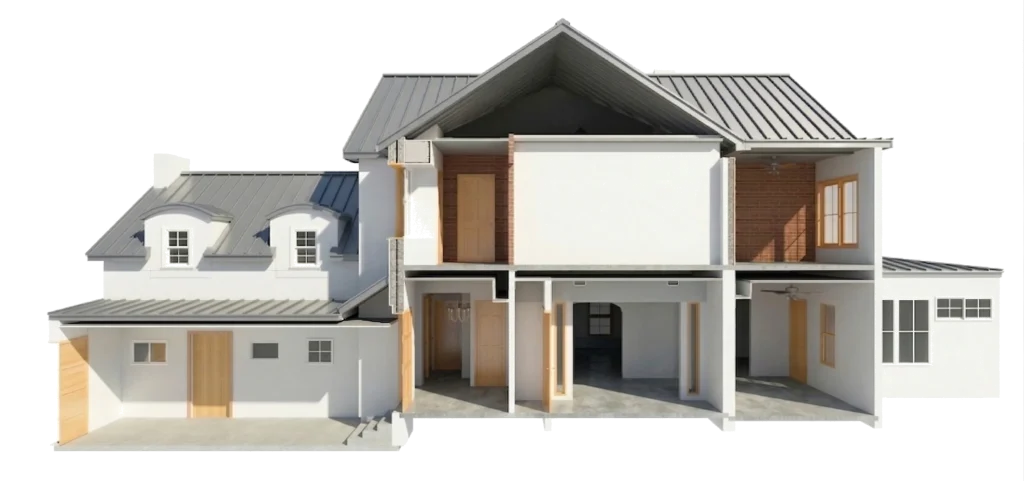

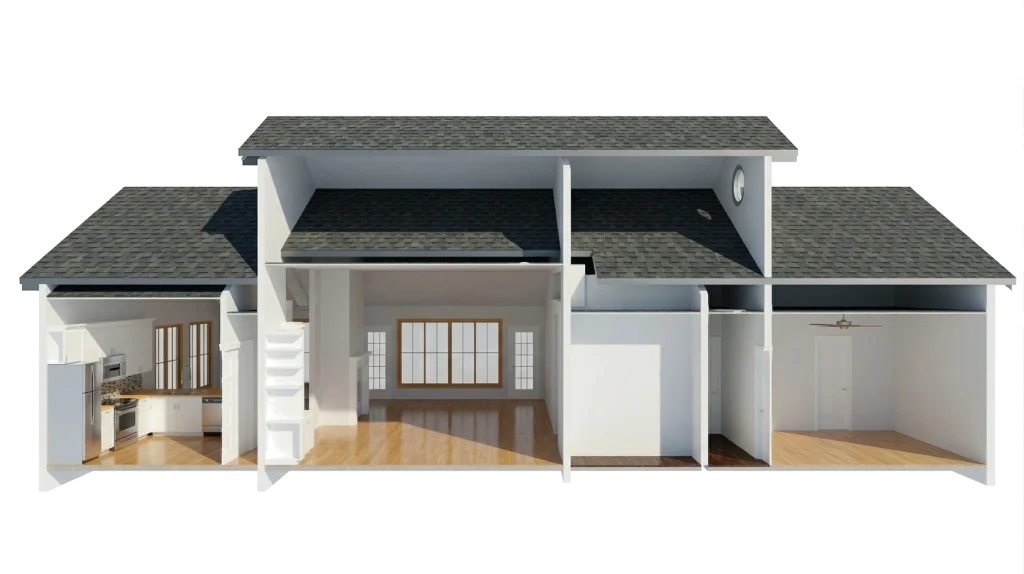

  • Multi-floor properties developed level by level, with full vertical coordination between floors
  • Staircase geometry, level transitions, and inter-floor relationships accurately modeled from the point cloud data

From compact single-level homes to multi-story residences, FCC applied a consistent, rigorous modeling approach. Using point cloud data, each space was recreated as an accurate digital model, providing designers and contractors with a reliable, complete view at every level.

Project imageProject imageProject imageProject imageProject imageProject image
Residential As-Built Collection

Architectural Detail & LOD 500 Modeling

  • Doors, windows, frames, and wall openings modeled with precise geometry and placement

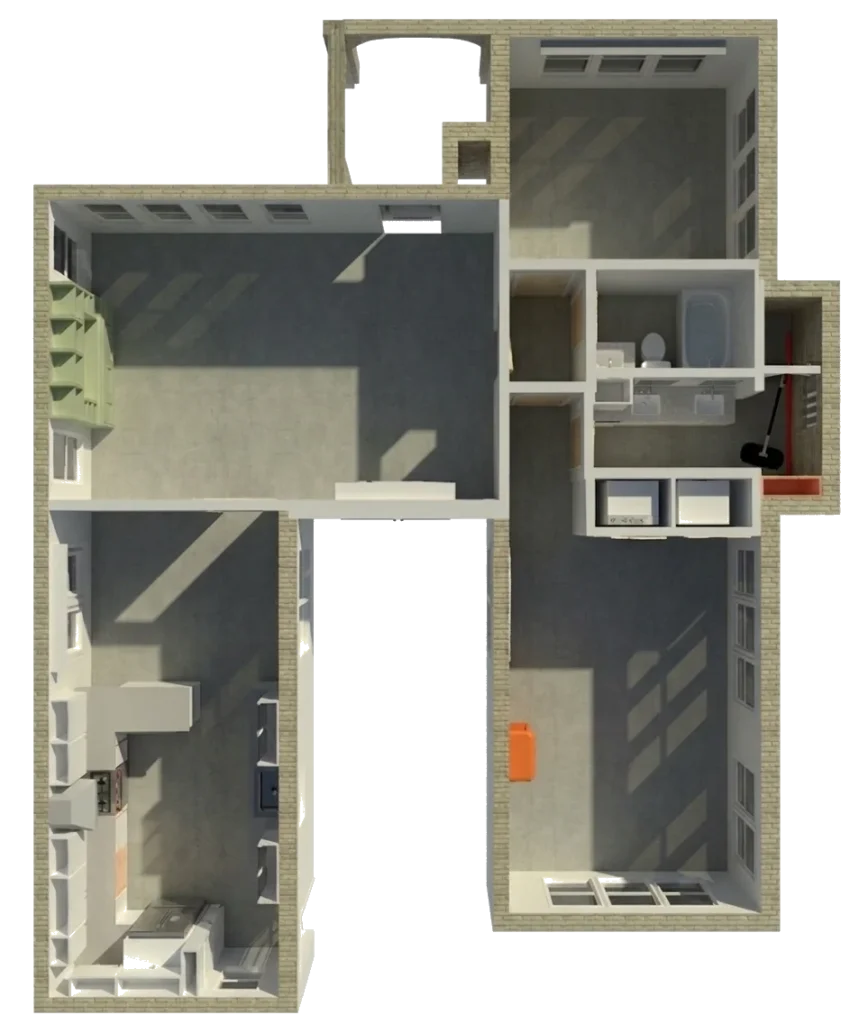

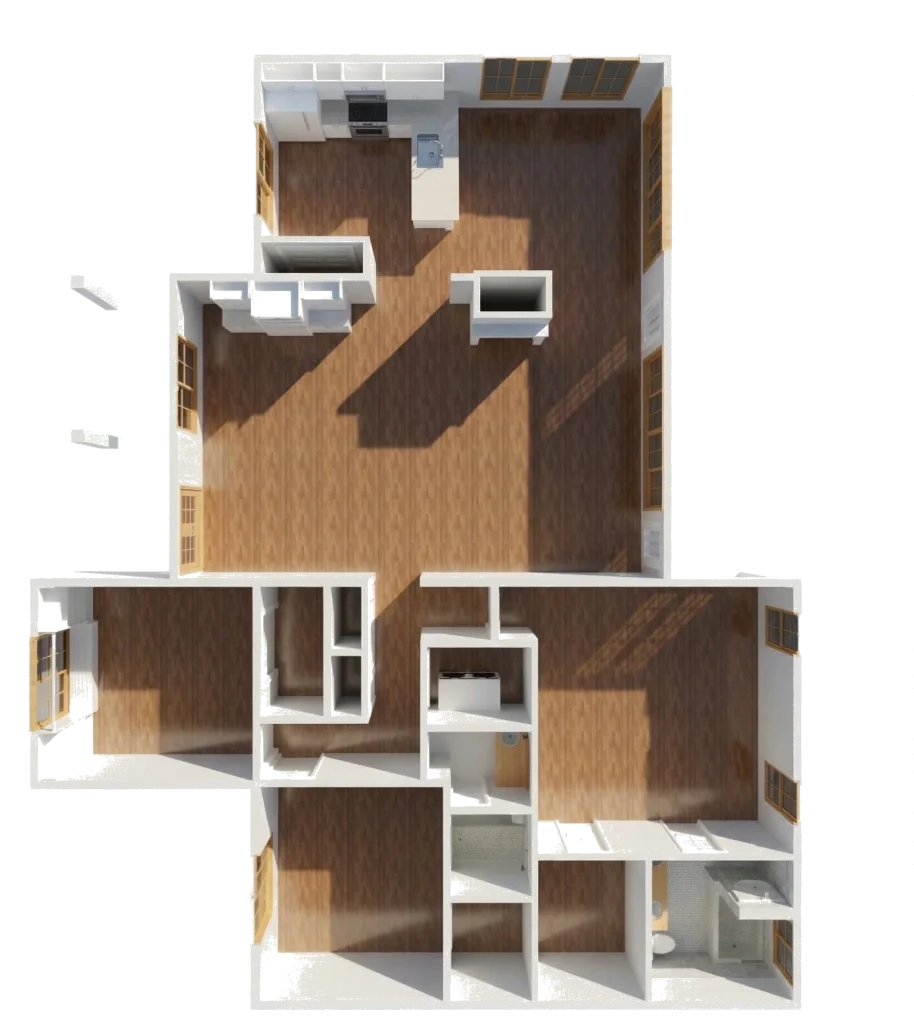

  • Room-by-room modeling carried out to ensure every space is fully represented within the dataset
  • Ceiling components including coving, cornices, recessed features, and height variations modeled throughout

At LOD 500, the model becomes a verified as-built digital twin, not just a representation. Each element is modeled directly from point cloud data to reflect exact site conditions, providing a reliable basis for renovation, extension, or refurbishment.

Project imageProject imageProject imageProject imageProject image
Residential As-Built Collection

As-Built Purpose & Application

  • Renovation and interior redesign teams can work directly from accurate existing conditions without revisiting the site
  • Extension and addition planning supported by precise knowledge of the current building footprint and structure
  • Property documentation preserved as a long-term record for the homeowner or developer

High-detail as-built modeling transforms residential renovation by replacing outdated drawings and manual measurements with a single, accurate source, reducing errors, saving time, and ensuring full confidence in existing conditions before design begins.

Project imageProject imageProject imageProject imageProject image
Residential As-Built Collection

Point Cloud to BIM Process & Precision

  • Point cloud datasets received and interpreted for each residential property, covering full interior and exterior geometry
  • All scan data reviewed and used as the direct reference for LOD 500 as-built model development
  • Final BIM models developed to capture every true installed condition, from architectural shell to interior detail

Using point cloud data, FCC developed complete, accurate as-built BIM models for each home. Every element, from ceilings to finishes and fixtures, was modeled with precision, delivering high-quality, construction-ready documentation from raw scan data.

Project imageProject imageProject imageProject imageProject image
